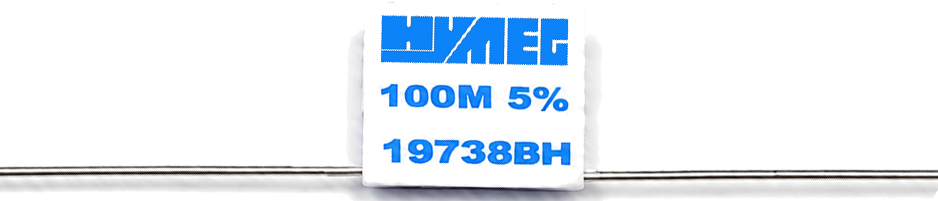

Precision Plate Resistor | High-Voltage
This series of precision plate resistors and dividers are available in a broad range of resistance values, voltages, tolerances, and divider matching requirements. One of the primary characteristics is the extreme stability of resistance from the application of high voltages over extended periods of time. These design of the FV and DVN Series also results in very low voltage coefficients of resistance over the entire voltage range.
Specifications
| Product | Power (W) | VDC | Min Resistance | Max Resistance | |
|---|---|---|---|---|---|
| DVN2 | 1 | 5000 | 1M | 1,000M | |
| FV3 | 2 | 5000 | 1M | 1,200M | |
| DVN7 | 2 | 10000 | 1M | 5,000M | |
| FV7 | 3 | 12000 | 1M | 5,000M | |
| FV10 | 4 | 20000 | 1M | 5,000M | |
| DVN10 | 4 | 20000 | 1M | 5,000M | |
| FV15 | 6 | 30000 | 1M | 5,000M | |
| DVN15 | 6 | 25000 | 1M | 10,000M |
Frequently Asked Questions
What are FV and DVN precision plate resistors?
They are precision plate resistors and voltage dividers offering a broad range of resistance, voltage, tolerances, and divider matching, with high stability under high voltage.
How high voltage can precision plate resistors go?
Models reach up to about 30,000 VDC (e.g. FV15) with power ratings up to 6 W.
Are datasheets available?
Yes. Each FV and DVN SKU links to a PDF datasheet under /assets/.
